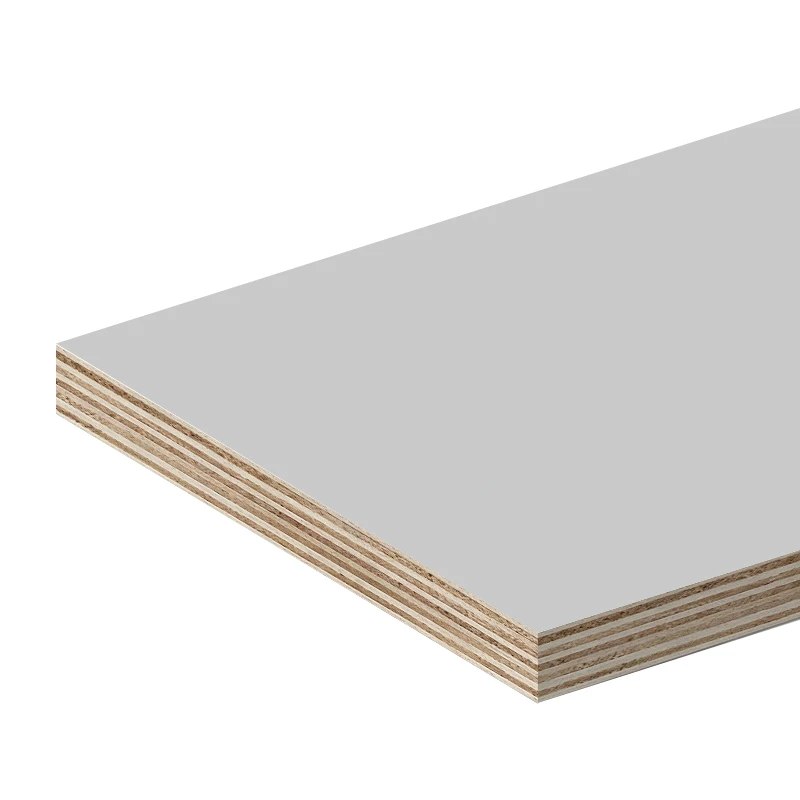

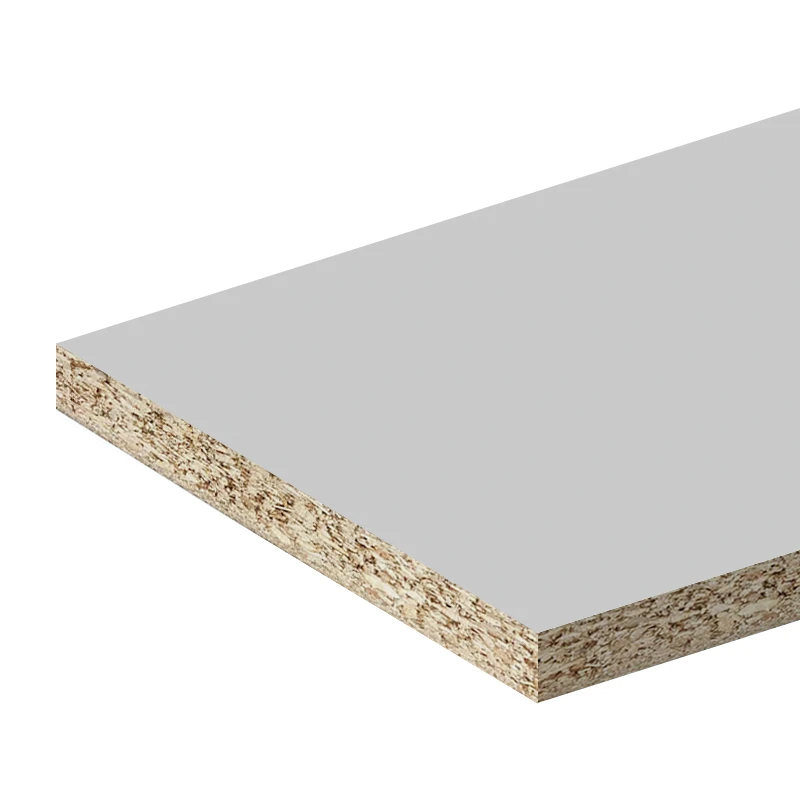

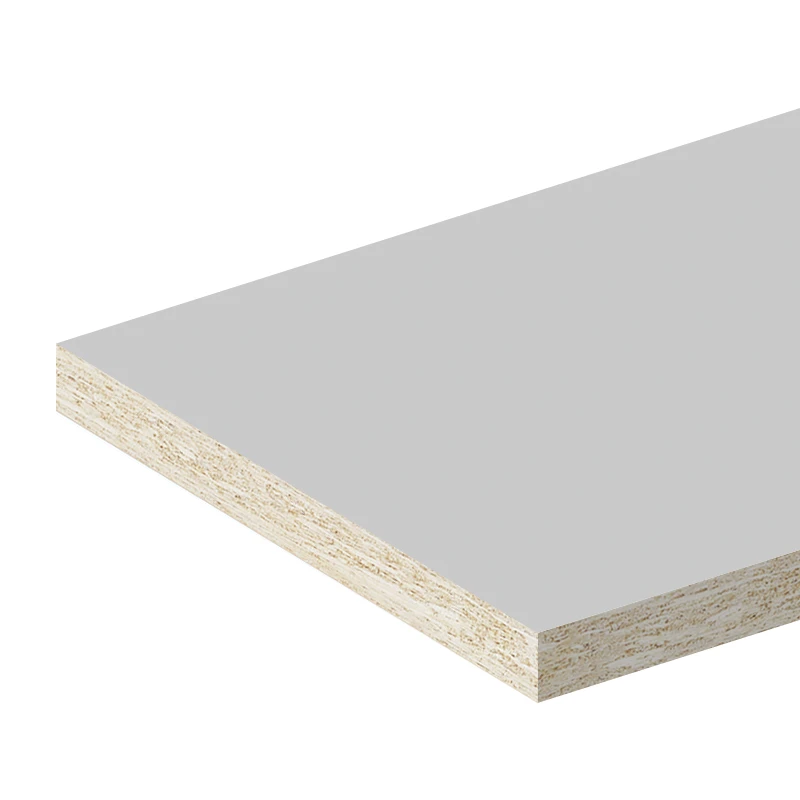

Substrate: MDF, Particle Board, FOSB, Plywood
Surface: Melamine Impregnated Decorative Paper
Sizes: 1220×2440mm, 1220×2745mm
Thickness: 9mm, 18mm
Eco Level: Optional E0 & ENF standards
Decorative Colors: Multiple colors available
Custom: OEM & ODM for material, size, pattern, lamination

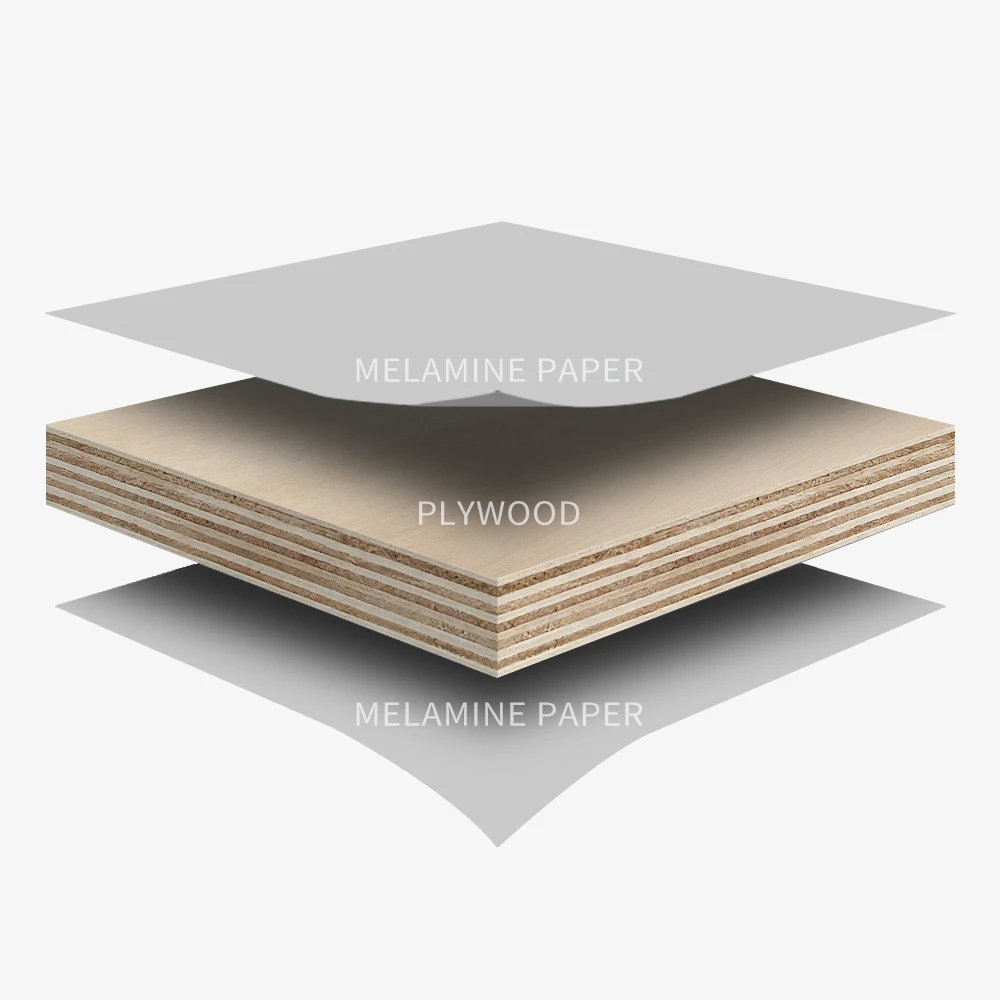

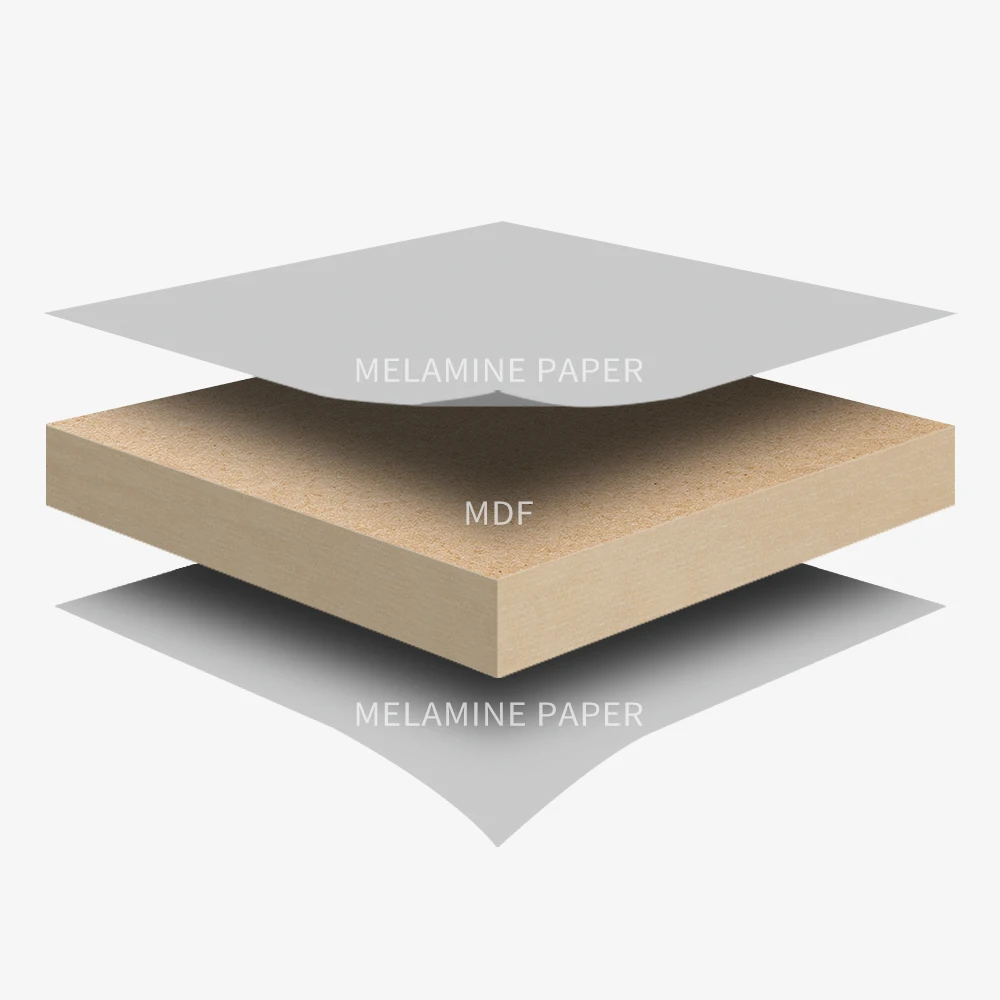

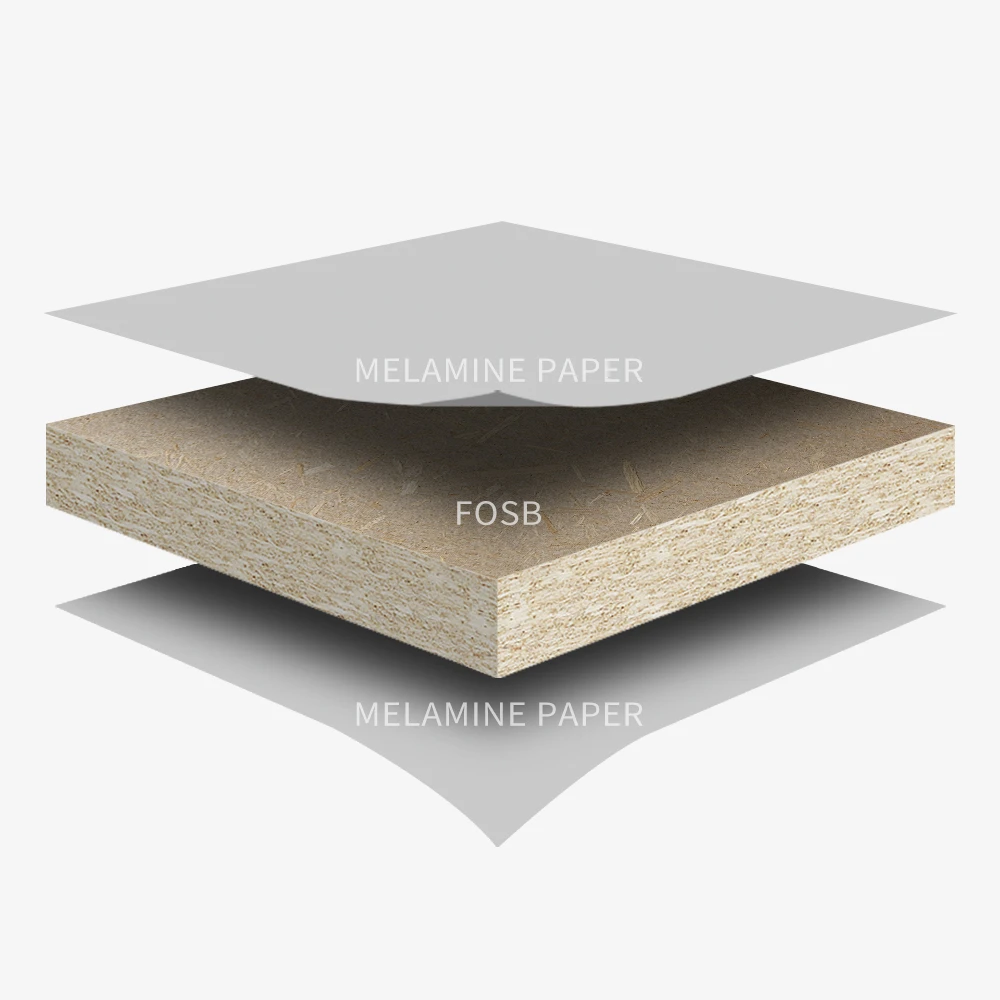

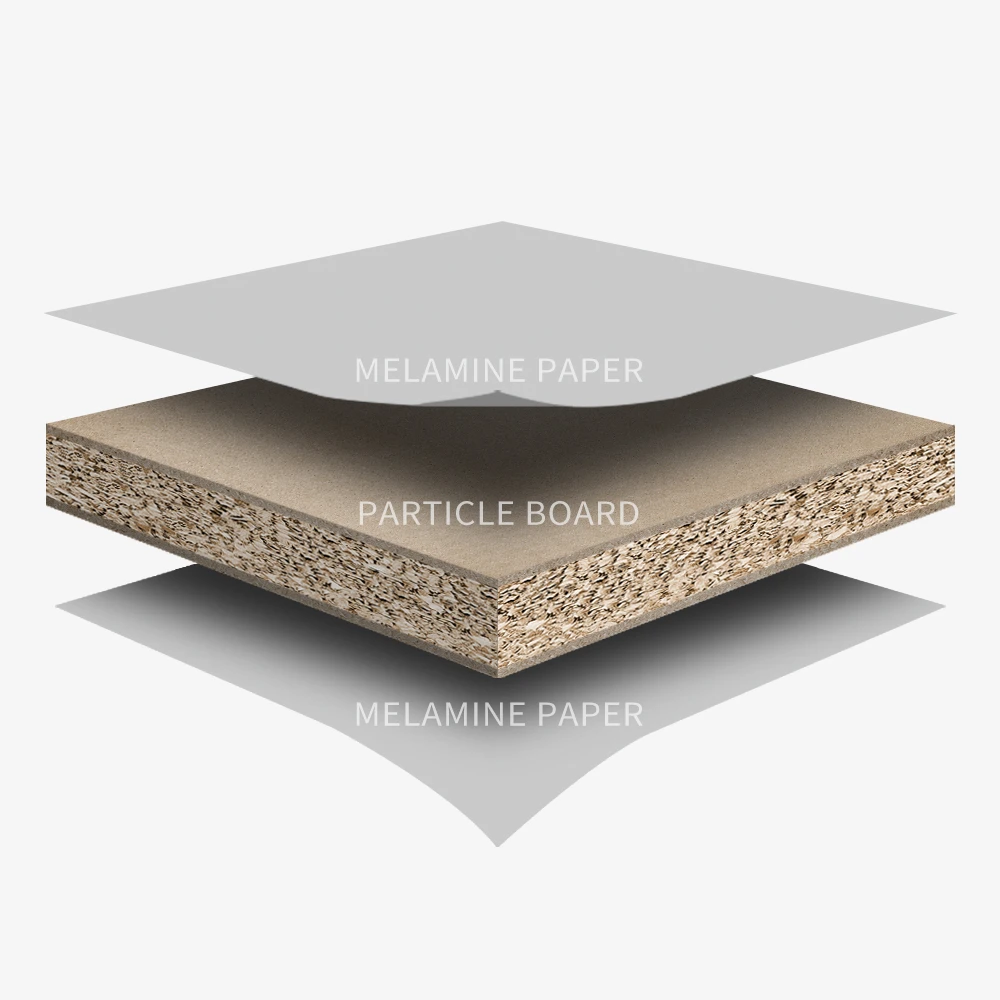

Solid Color Series Adopts solid color printed melamine decorative paper, pressed and formed under high temperature and high pressure with plain matte steel plate, and fully bonded onto substrates including MDF, PB, FOSB and Plywood. The panel delivers uniform, clean color with fine and smooth texture.
| Category | Parameter | Unit | MDF | PB | FOSB | Plywood | Test Standard |
|---|---|---|---|---|---|---|---|
| Core Physical & Mechanical Properties |
Panel Density | g/cm³ | 0.70–0.85 | 0.65–0.75 | 0.60–0.70 | 0.60–0.75 | GB/T 1933 |
| Moisture Content | % | 4–11 | 3–10 | 2–12 | 6–14 | GB/T 1931 | |
| Modulus of Rupture (MOR), Longitudinal | MPa | ≥ 26 | ≥ 12 | ≥ 20 | ≥ 20 | GB/T 17657 | |
| Modulus of Rupture (MOR), Transverse | MPa | ≥ 24 | ≥ 10 | ≥ 10 | ≥ 18 | GB/T 17657 | |
| Modulus of Elasticity (MOE), Longitudinal | MPa | ≥ 2500 | ≥ 2000 | ≥ 3500 | ≥ 2500 | GB/T 17657 | |
| Modulus of Elasticity (MOE), Transverse | MPa | ≥ 2300 | ≥ 1800 | ≥ 1400 | ≥ 2200 | GB/T 17657 | |
| Internal Bond (IB) Strength | MPa | ≥ 0.75 | ≥ 0.35 | ≥ 0.30 | ≥ 0.60 | GB/T 17657 | |
| Surface Bond Strength (PET Film Peel) | MPa | ≥ 1.2 | ≥ 0.8 | ≥ 0.7 | ≥ 1.0 | GB/T 17657 | |
| Screw Holding Power (Perpendicular to Face) | N | ≥ 1200 | ≥ 800 | ≥ 900 | ≥ 1000 | GB/T 17657 | |
| Environmental & Safety Performance |
Formaldehyde Emission (ENF Grade) | mg/m³ | ≤ 0.025 | ≤ 0.025 | ≤ 0.025 | ≤ 0.025 | GB 18580-2017 |
| Formaldehyde Emission (E0 Grade) | mg/m³ | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | GB 18580-2017 | |
| Heavy Metal Content (Pb + Cd) | mg/kg | ≤ 90 | ≤ 90 | ≤ 90 | ≤ 90 | GB 18580-2017 | |
| VOC Emission | mg/m³ | ≤ 0.5 | ≤ 0.5 | ≤ 0.5 | ≤ 0.5 | GB/T 18883 | |
| Dimensional Stability & Moisture Resistance |
Thickness Swelling (24 h Water Absorption) | % | ≤ 8 | ≤ 12 | ≤ 20 | ≤ 10 | GB/T 17657 |
| Dimensional Stability (Temperature & Humidity Cycling) | % | ≤ 0.3 | ≤ 0.5 | ≤ 0.4 | ≤ 0.2 | GB/T 17657 | |
| Warpage | mm/m | ≤ 1.0 | ≤ 1.5 | ≤ 1.2 | ≤ 0.8 | GB/T 1936.1 | |
| Dimensional Tolerances |
Thickness Tolerance (after Sanding) | mm | ± 0.2 | ± 0.3 | ± 0.3 | ± 0.2 | GB/T 11718 |
| Length & Width Tolerance | mm | ± 2.0 | ± 3.0 | ± 3.0 | ± 2.0 | GB/T 11718 | |
| Diagonal Squareness | mm/m | ≤ 1.5 | ≤ 2.0 | ≤ 2.0 | ≤ 1.5 | GB/T 11718 | |
| Surface Flatness | mm/m | ≤ 0.8 | ≤ 1.2 | ≤ 1.0 | ≤ 0.6 | GB/T 11718 |
* GB/T refers to Chinese national recommended standards; GB refers to Chinese national mandatory standards. The values above are typical reference values for standard-specification products; actual data may vary by thickness and specification.
Panels are neatly stacked horizontally. Each panel is pre-covered with PE protective film to prevent scratches and fingerprints on PET finish. Paper edge protectors are installed around the stack to guard corners. The whole stack is wrapped with PE waterproof film with desiccants inside to resist sea moisture and mildew. Non-fumigation plywood pallets are used for loading, secured tightly by plastic-steel straps and stretch film to avoid shifting during transit. Shipping marks including product size, quantity, gross/net weight and volume are attached on pallets, with “Keep Dry” and “Fragile” warning signs. Pallets can be loaded flat into containers. This standard packing fits all panel types with excellent stability and low bending risk.
