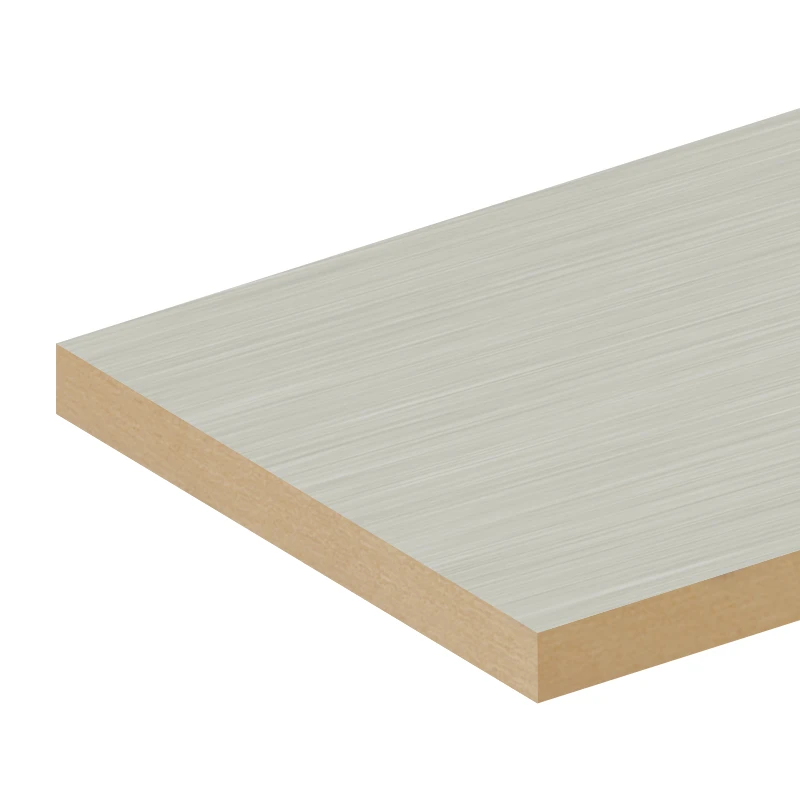

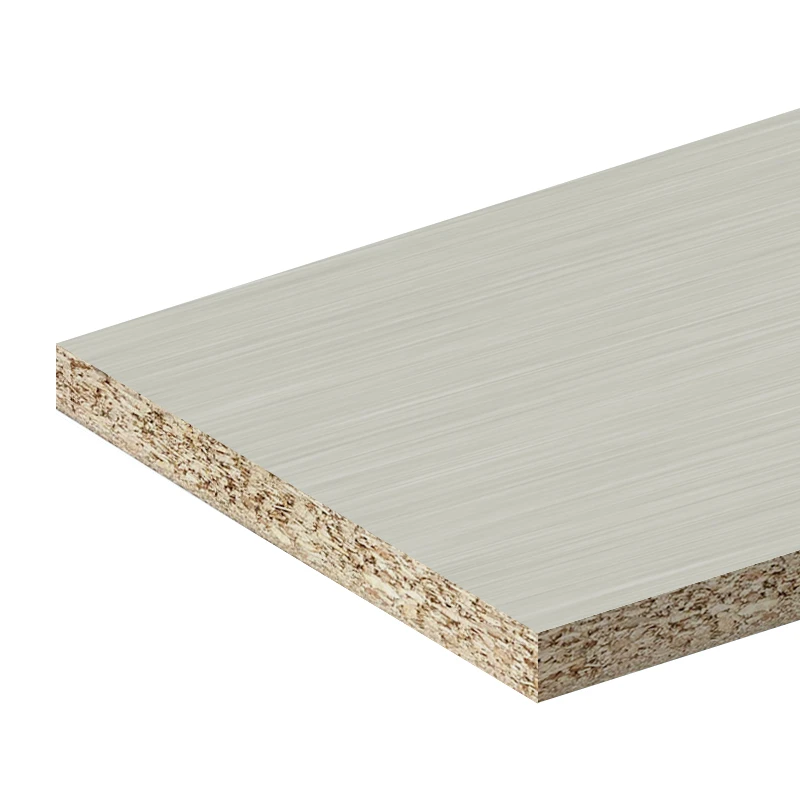

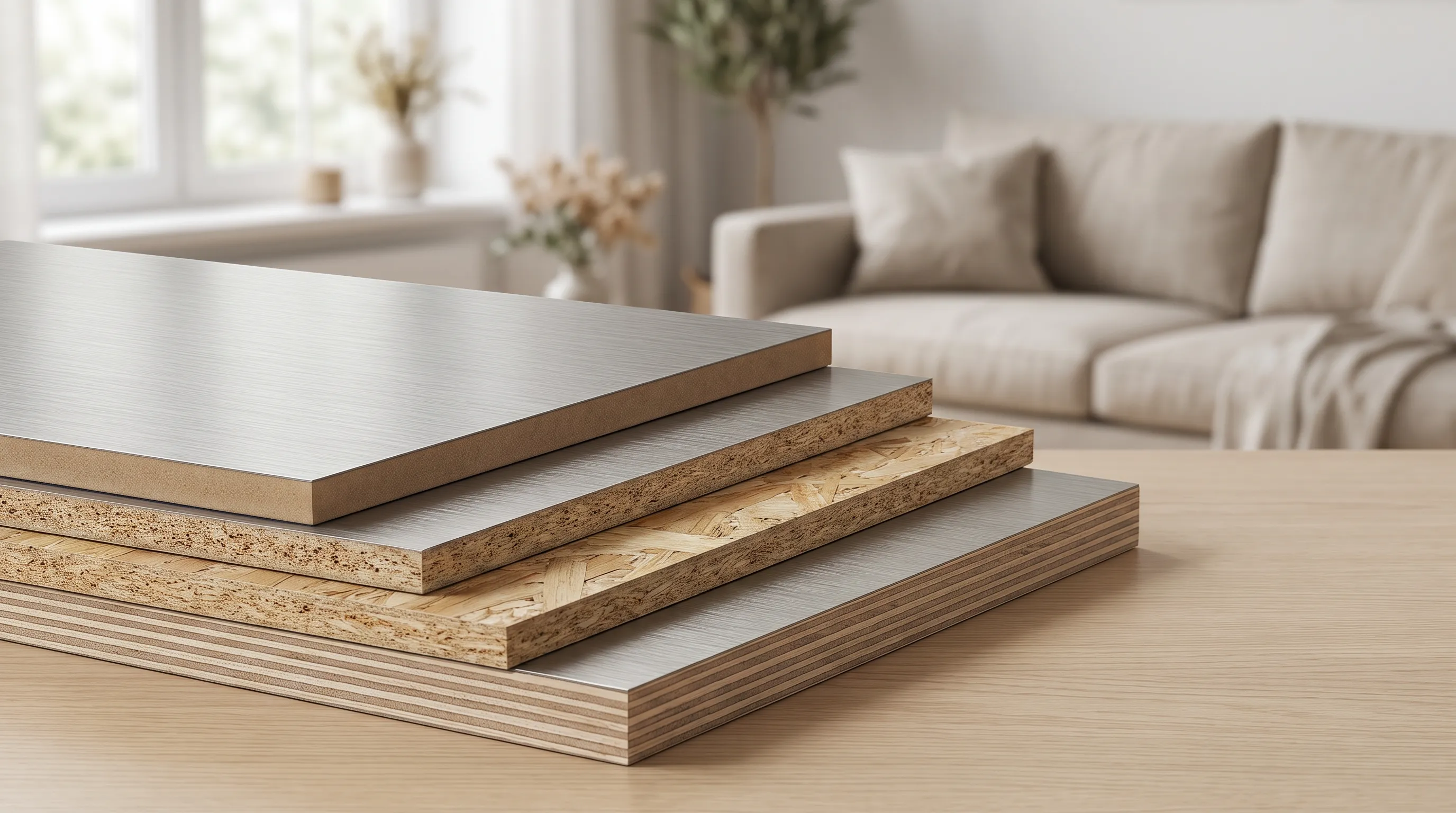

Substrate: MDF, Particle Board, FOSB, Plywood
Surface: PET Decorative Film
Sizes: 1220×2440mm, 1220×2745mm
Thickness: 9/12/18/22mm
Lamination: Single / Double sided
Eco Level: E0, ENF (Test reports available)
Custom: OEM & ODM for material, size, pattern, lamination

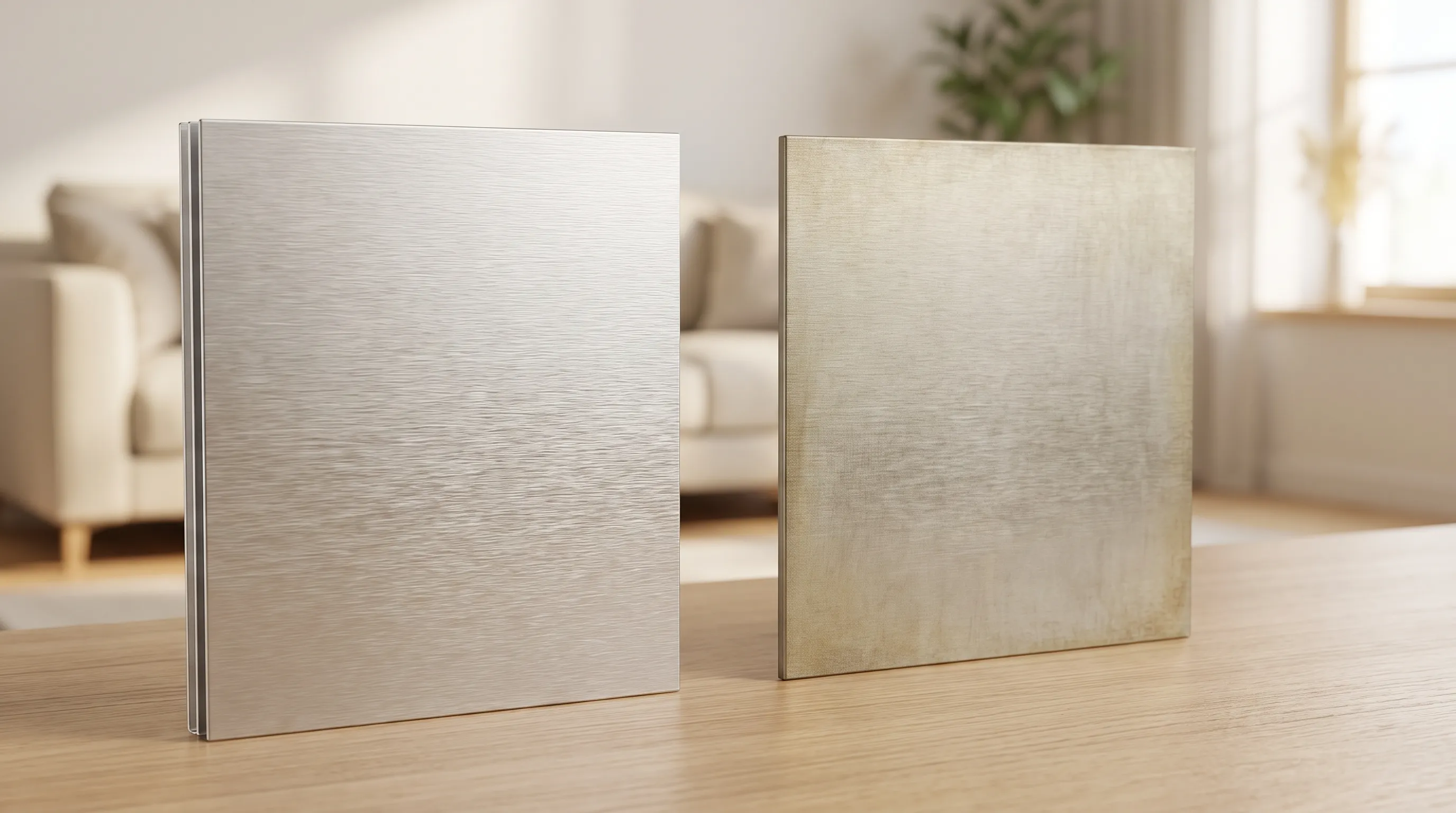

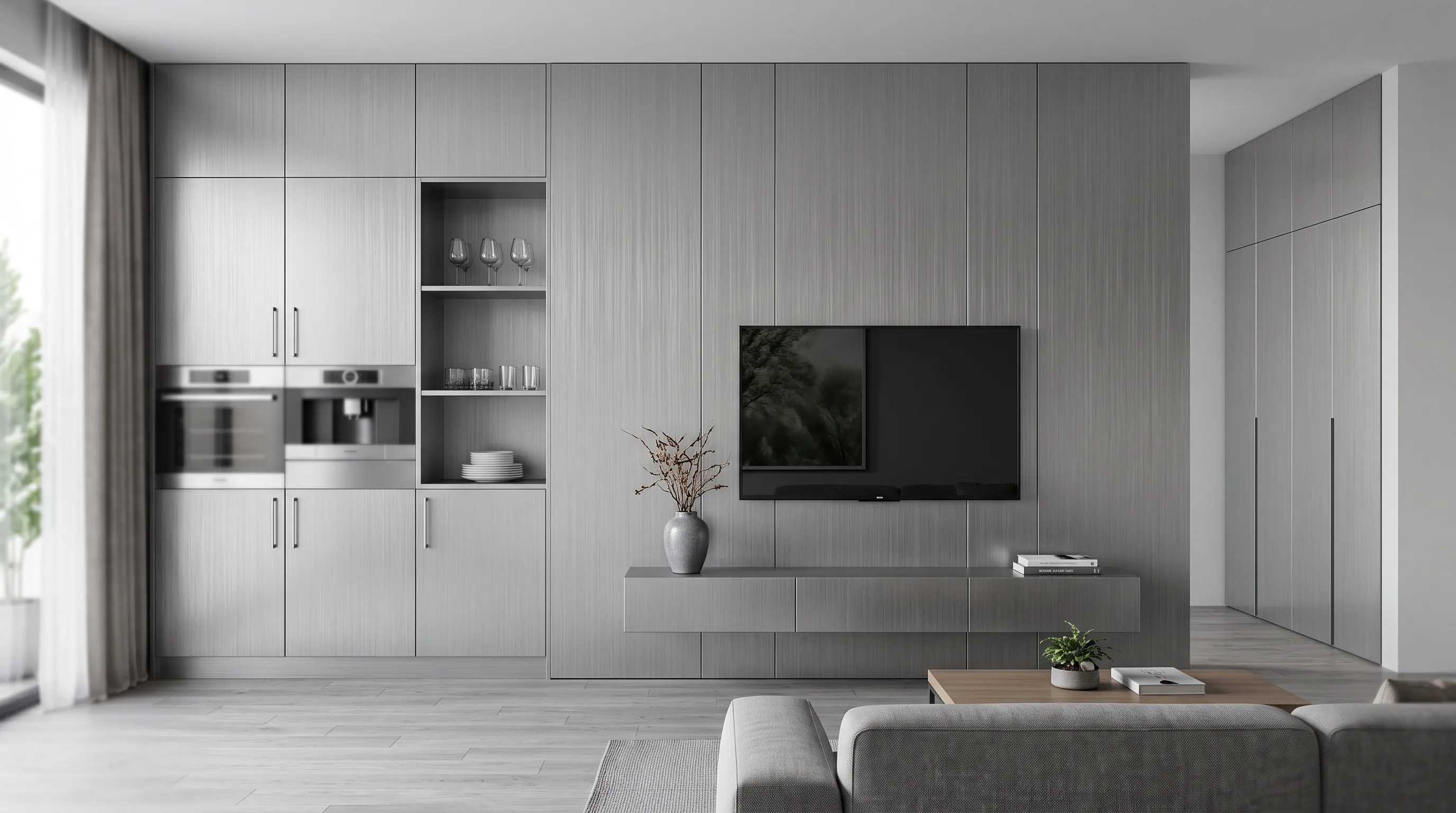

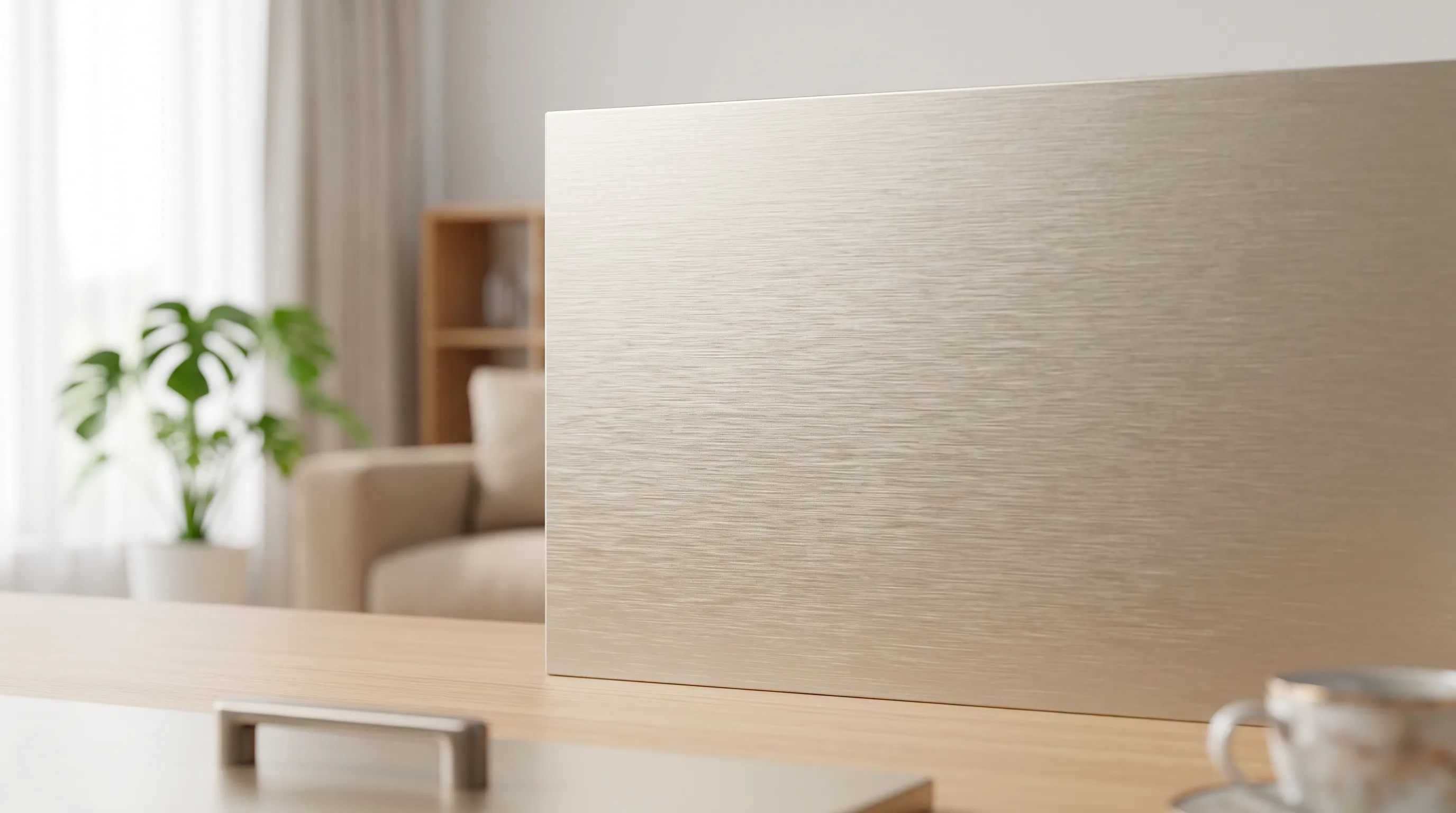

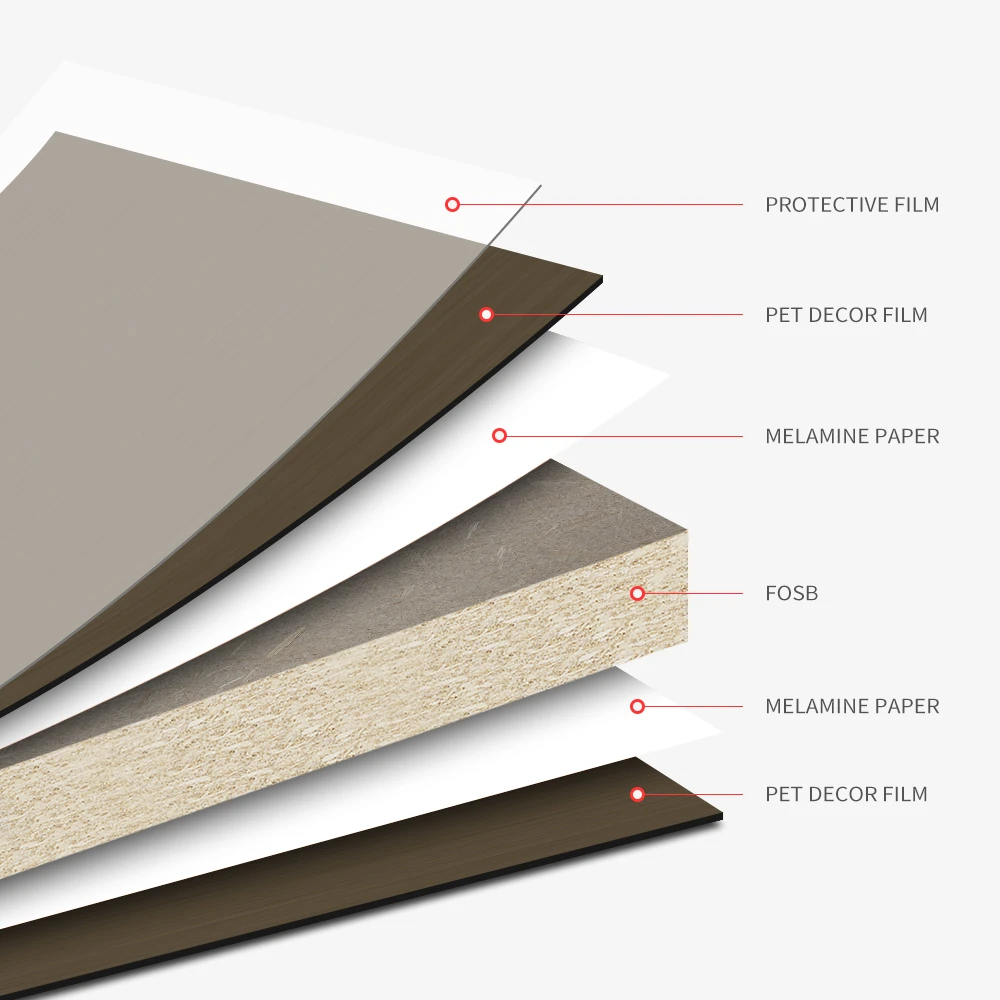

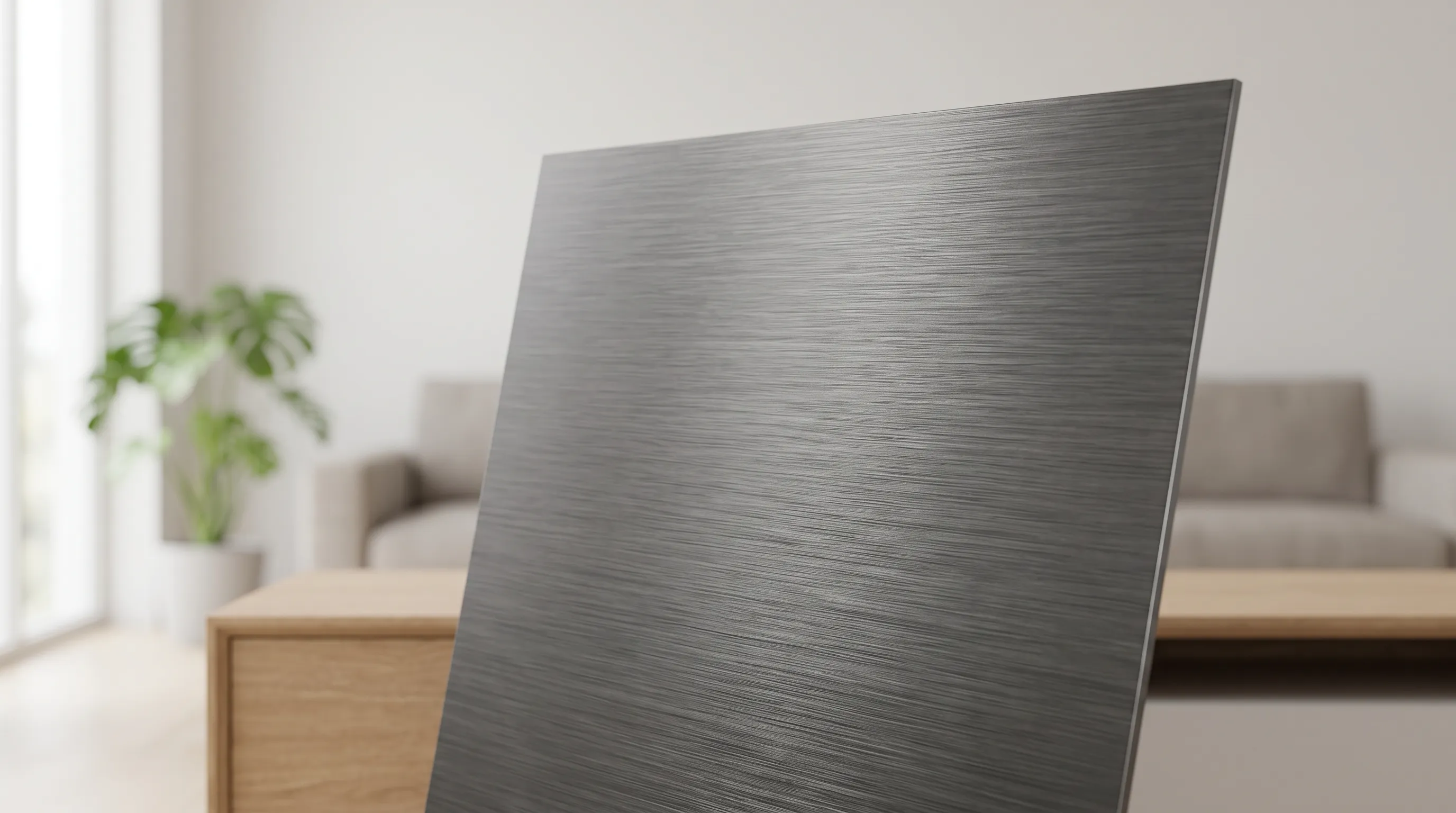

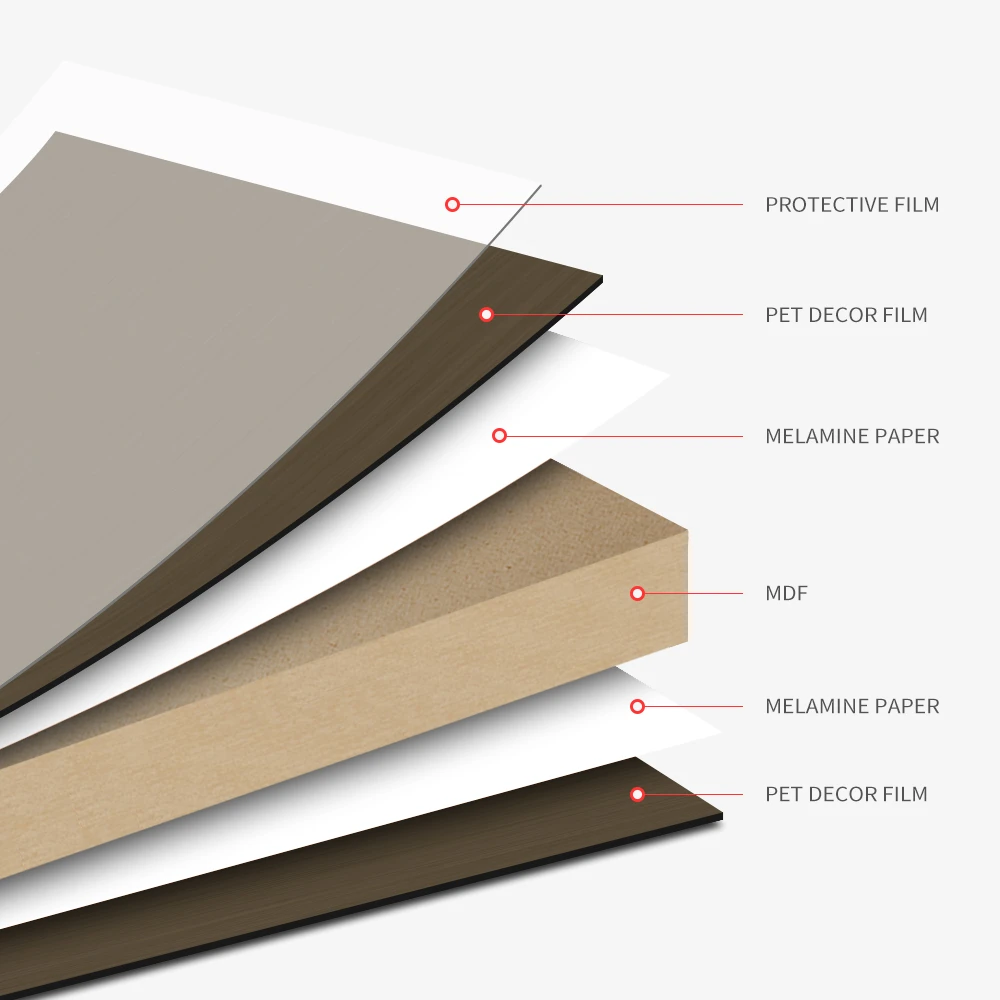

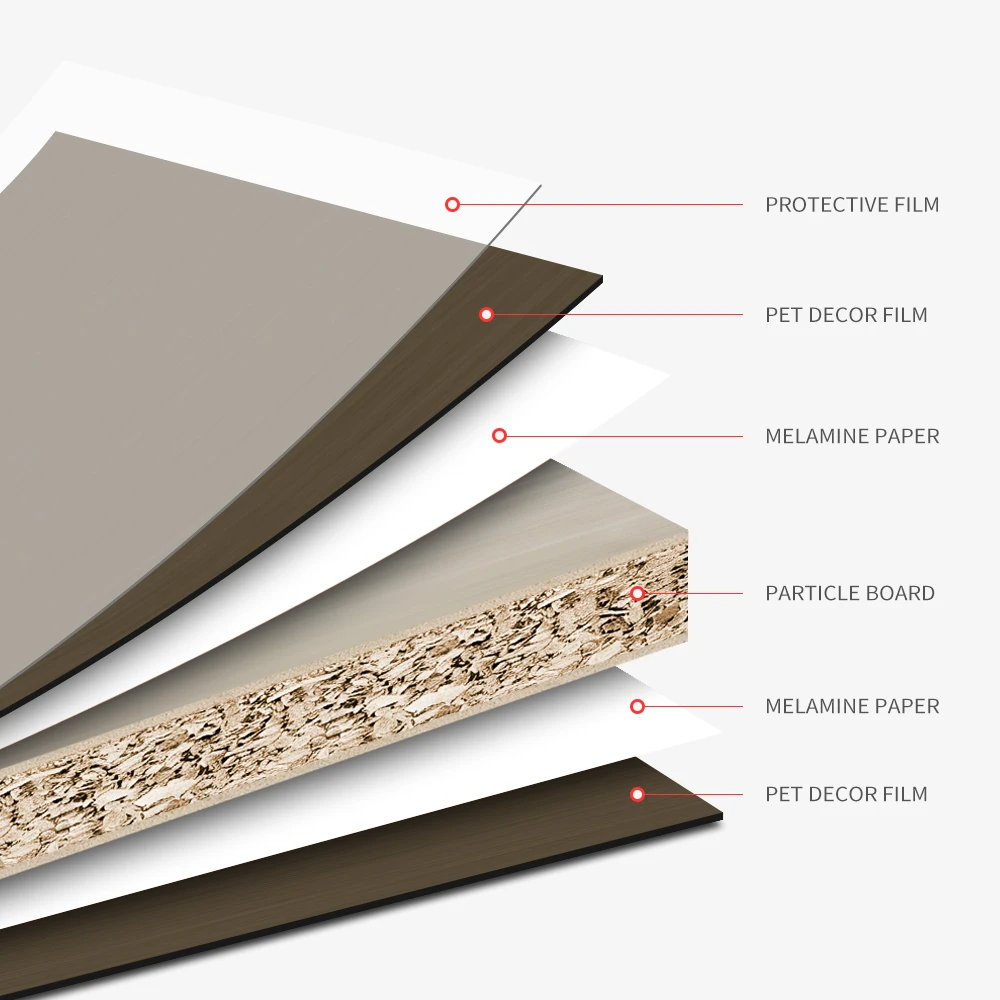

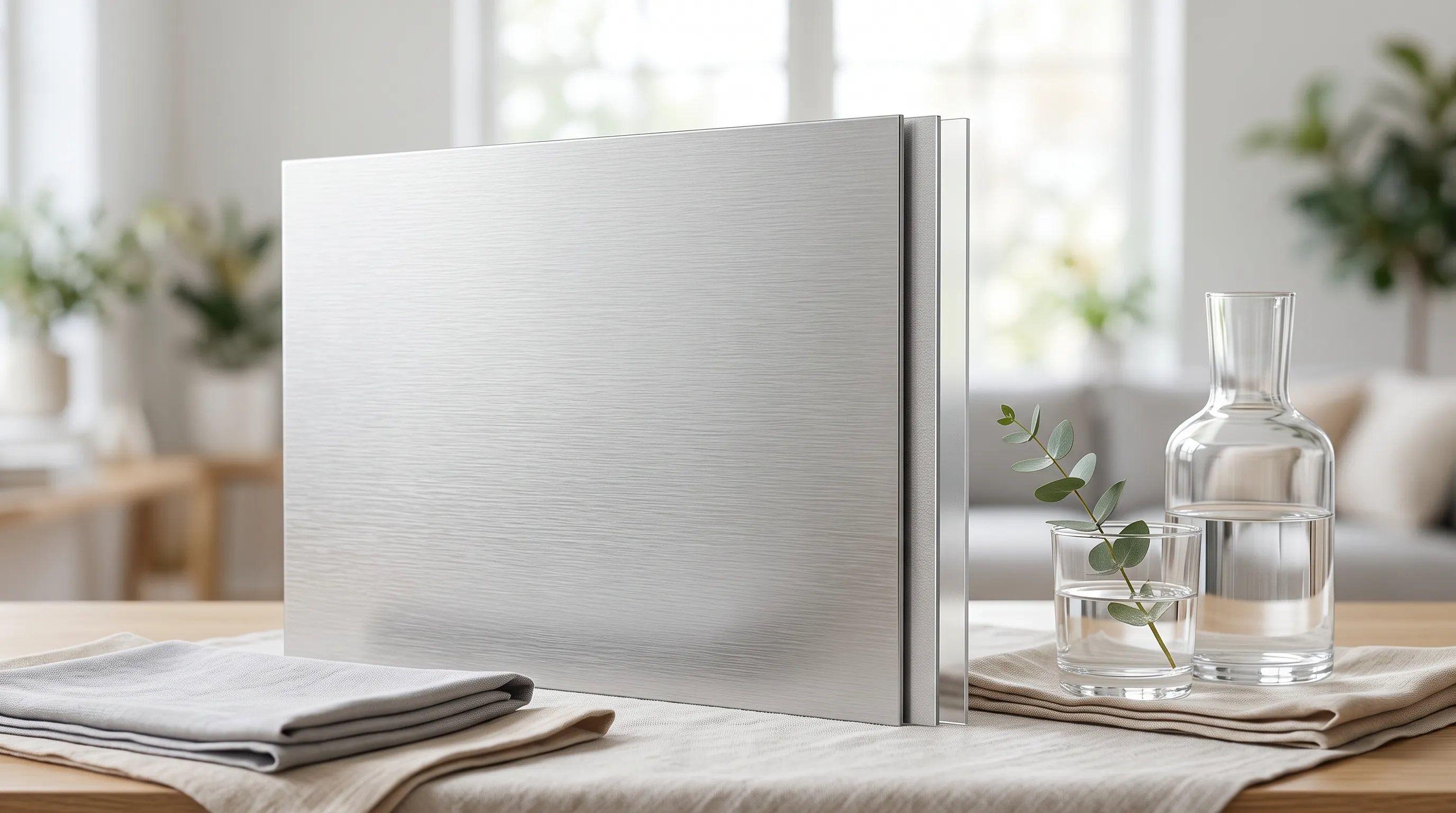

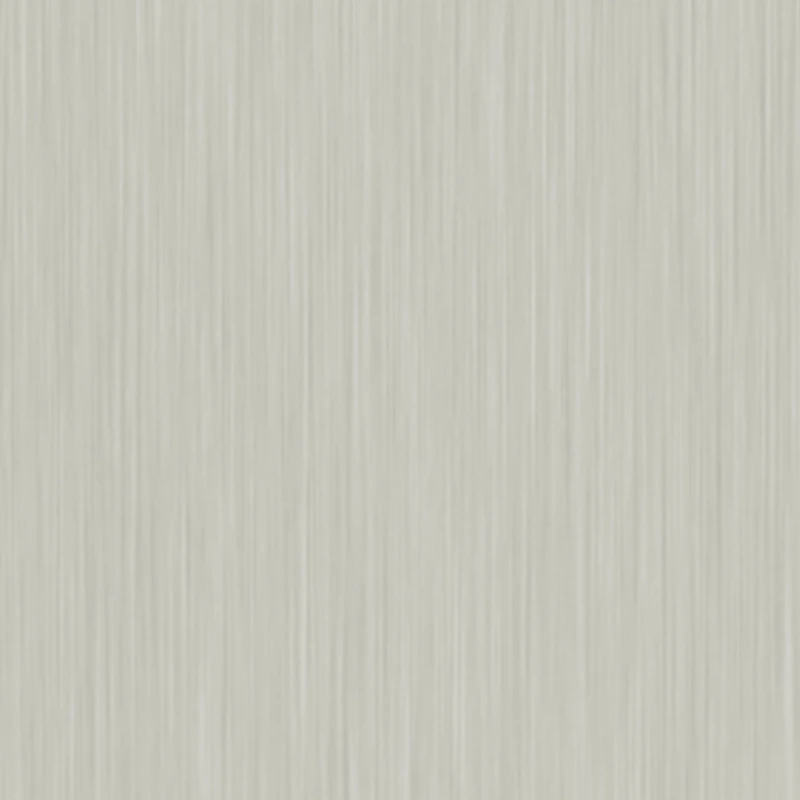

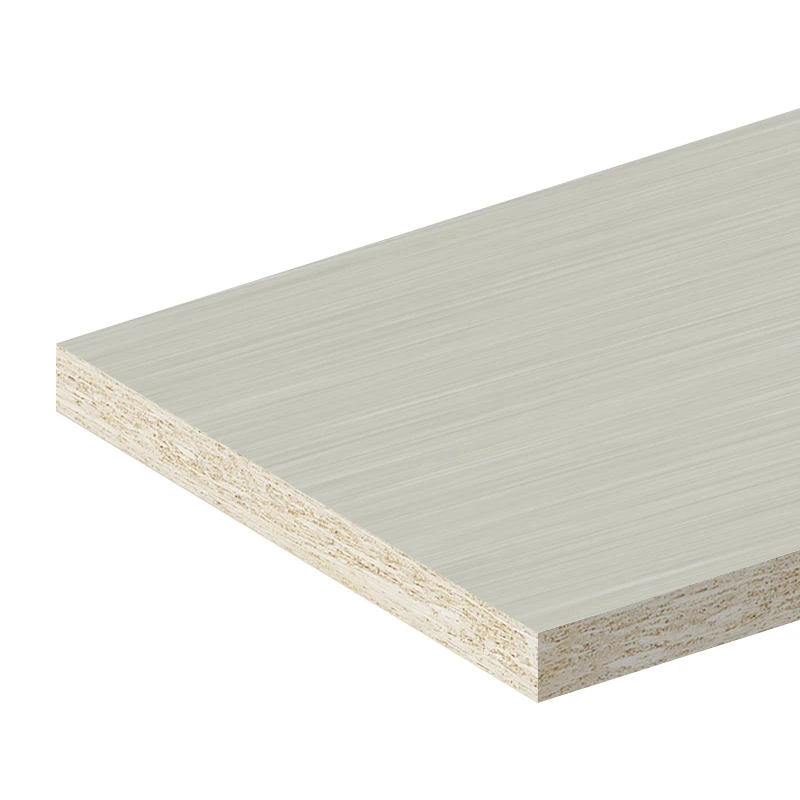

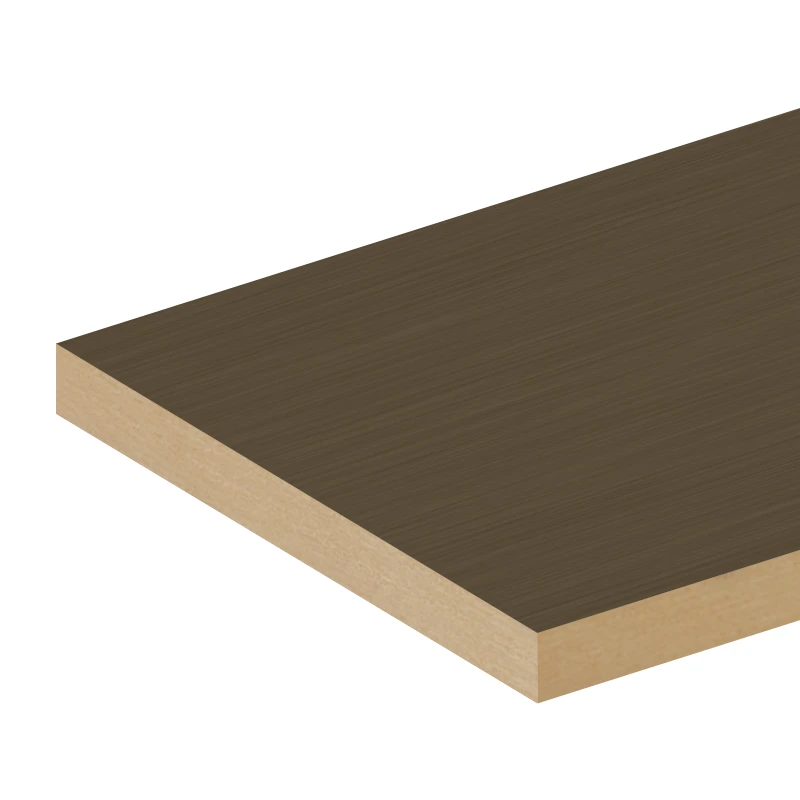

Brushed Metal Finish Series: This series of panels is made by flat-laminating food-grade PET decorative film composited with vacuum-plated brushed layer and outer UV coating onto substrates including MDF, PB, FOSB, plywood and others with PUR hot melt adhesive. The panels have three-dimensional realistic brushed texture and vivid metallic effect. PUR lamination provides strong adhesion without delamination or cracking, featuring long-lasting scratch resistance and stable color. They are mainly used for high-end cabinet doors, wall panels and other decorative panels.
| Category | Parameter | Unit | MDF | PB | FOSB | Plywood | Test Standard |
|---|---|---|---|---|---|---|---|
| Core Physical & Mechanical Properties |
Panel Density | g/cm³ | 0.70–0.85 | 0.65–0.75 | 0.60–0.70 | 0.60–0.75 | GB/T 1933 |
| Moisture Content | % | 4–11 | 3–10 | 2–12 | 6–14 | GB/T 1931 | |
| Modulus of Rupture (MOR), Longitudinal | MPa | ≥ 26 | ≥ 12 | ≥ 20 | ≥ 20 | GB/T 17657 | |
| Modulus of Rupture (MOR), Transverse | MPa | ≥ 24 | ≥ 10 | ≥ 10 | ≥ 18 | GB/T 17657 | |
| Modulus of Elasticity (MOE), Longitudinal | MPa | ≥ 2500 | ≥ 2000 | ≥ 3500 | ≥ 2500 | GB/T 17657 | |
| Modulus of Elasticity (MOE), Transverse | MPa | ≥ 2300 | ≥ 1800 | ≥ 1400 | ≥ 2200 | GB/T 17657 | |
| Internal Bond (IB) Strength | MPa | ≥ 0.75 | ≥ 0.35 | ≥ 0.30 | ≥ 0.60 | GB/T 17657 | |
| Surface Bond Strength (PET Film Peel) | MPa | ≥ 1.2 | ≥ 0.8 | ≥ 0.7 | ≥ 1.0 | GB/T 17657 | |
| Screw Holding Power (Perpendicular to Face) | N | ≥ 1200 | ≥ 800 | ≥ 900 | ≥ 1000 | GB/T 17657 | |
| Environmental & Safety Performance |
Formaldehyde Emission (ENF Grade) | mg/m³ | ≤ 0.025 | ≤ 0.025 | ≤ 0.025 | ≤ 0.025 | GB 18580-2017 |
| Formaldehyde Emission (E0 Grade) | mg/m³ | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | GB 18580-2017 | |
| Heavy Metal Content (Pb + Cd) | mg/kg | ≤ 90 | ≤ 90 | ≤ 90 | ≤ 90 | GB 18580-2017 | |
| VOC Emission | mg/m³ | ≤ 0.5 | ≤ 0.5 | ≤ 0.5 | ≤ 0.5 | GB/T 18883 | |
| Dimensional Stability & Moisture Resistance |
Thickness Swelling (24 h Water Absorption) | % | ≤ 8 | ≤ 12 | ≤ 20 | ≤ 10 | GB/T 17657 |
| Dimensional Stability (Temperature & Humidity Cycling) | % | ≤ 0.3 | ≤ 0.5 | ≤ 0.4 | ≤ 0.2 | GB/T 17657 | |
| Warpage | mm/m | ≤ 1.0 | ≤ 1.5 | ≤ 1.2 | ≤ 0.8 | GB/T 1936.1 | |
| Dimensional Tolerances |
Thickness Tolerance (after Sanding) | mm | ± 0.2 | ± 0.3 | ± 0.3 | ± 0.2 | GB/T 11718 |
| Length & Width Tolerance | mm | ± 2.0 | ± 3.0 | ± 3.0 | ± 2.0 | GB/T 11718 | |
| Diagonal Squareness | mm/m | ≤ 1.5 | ≤ 2.0 | ≤ 2.0 | ≤ 1.5 | GB/T 11718 | |
| Surface Flatness | mm/m | ≤ 0.8 | ≤ 1.2 | ≤ 1.0 | ≤ 0.6 | GB/T 11718 |
* GB/T refers to Chinese national recommended standards; GB refers to Chinese national mandatory standards. The values above are typical reference values for standard-specification products; actual data may vary by thickness and specification.
Panels are neatly stacked horizontally. Each panel is pre-covered with PE protective film to prevent scratches and fingerprints on PET finish. Paper edge protectors are installed around the stack to guard corners. The whole stack is wrapped with PE waterproof film with desiccants inside to resist sea moisture and mildew. Non-fumigation plywood pallets are used for loading, secured tightly by plastic-steel straps and stretch film to avoid shifting during transit. Shipping marks including product size, quantity, gross/net weight and volume are attached on pallets, with “Keep Dry” and “Fragile” warning signs. Pallets can be loaded flat into containers. This standard packing fits all panel types with excellent stability and low bending risk.
